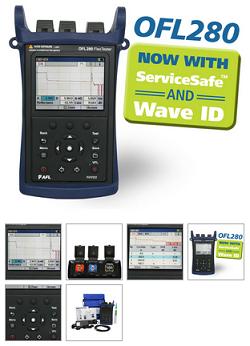

OFL280 FlexTester is a hand-held, single-mode OTDR available in two- and three-wavelength models, equipped with optical power meter, light source, and visual fault-locator.

With best-in-class dead zones and excellent dynamic range, the OFL280 FlexTester can test point-to-point fibers or PONs with split ratios up to 1x64. The OFL280-103 with ServiceSafe™ can fault-locate live fibers without disrupting service, and includes PON Power Meter to measure downstream FTTx power levels.

::Key Features::

[•] 34 dB dynamic range for point-to-point Metro, Access and FTTx PON networks
[•] Best-in-class dead zones: 0.8 m event and 3.5 m attenuation
[•] Standard features include OTDR, VFL and OPM/OLS with Wave ID
[•] Available ServiceSafe(TM) live fiber FTTx PON OTDR with integrated PON Power Meter
[•] Direct-sun viewable display
[•] Hand-held (0.8 kg/1.7 lb)
[•] 10 hours continuous battery operation

::Applications::

[•] Construction testing of FTTx PONs and point-to-point metro and access networks
[•] High-resolution fault-location of dark or live FTTx fibers
[•] Splice and connection verification (loss and reflectance)
[•] Optical power and loss measurement with time-saving Wave ID
[•] Fiber tracing and identification (tone signals or VFL)
